# W2UI to the rescue
I built this awesome app, but my customer cannot use it
---
# The Story...
---
background-image: url(images/products.png)
---
background-image: url(images/filters.png)
---
background-image: url(images/property_group.png)
---
background-image: url(images/property.png)
---
background-image: url(images/value.png)
---
background-image: url(images/product1.png)
---
background-image: url(images/product2.png)
---
class: center, middle

# ... ?
# .. ?
# . ?
---
class: center, middle

# Usabili.what?

Let's build a useable UI!
---
class: center, middle

# W2UI to the rescue

plus a

## Fancy Tree
---
With these I built

# A more Sophisticated GUI ...

for another "relationship mess":
* Webpages are in a hierarchy
* PageTemplate belongs to Webpage
* Webpage has many ContentElements (aka Images, Texts, Documents)
* through Placeholders (Tags)
  ```xml
  <container name="main_content"/>
  <photo name="logo"/>
  <document name="data_sheet"/>
  ```
To find one of 1000+ content elements ...
* ContentElement belongs to a Folder
---
background-image: url(images/content_manager.png)
---
background-image: url(images/content_manager_empty.png)
---
# W2UI gives us ...

... within 60K of Javascript
---

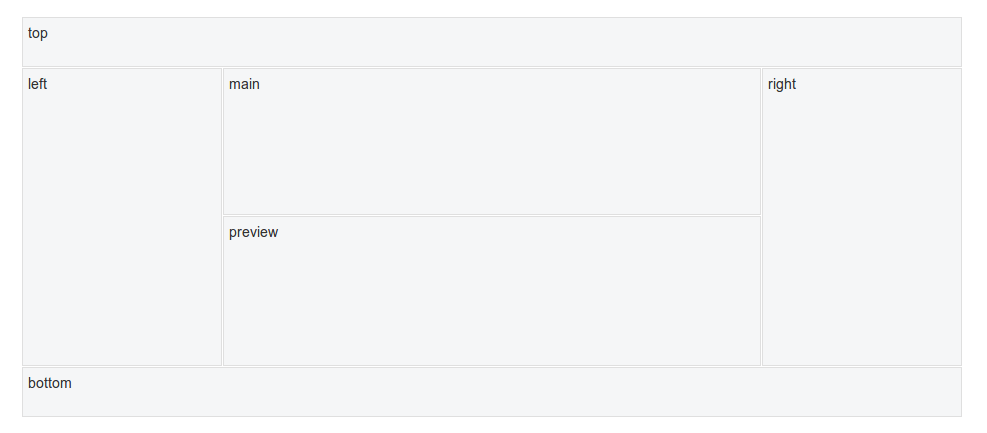

# Layouts

![Layout](images/layout.png)
---
# Grids

![Grid](images/grid.png)
---

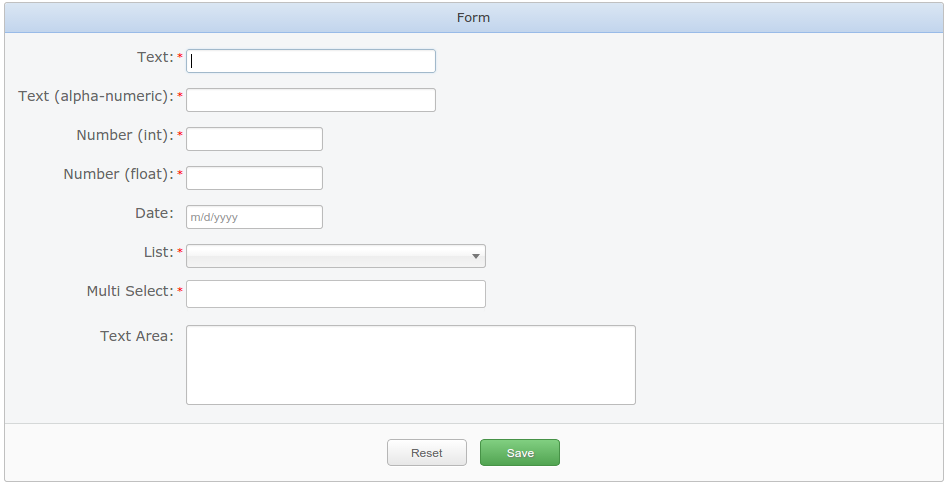

# Forms

![Form](images/form.png)
---
# Toolbars

![Toolbar](images/toolbar.png)
---

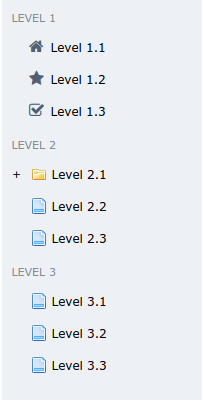

# Sidebars

![Sidebar](images/sidebar.png)
---

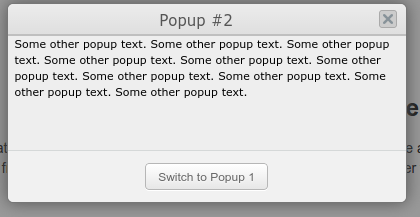

# Popups

![Popup](images/popup.png)
---

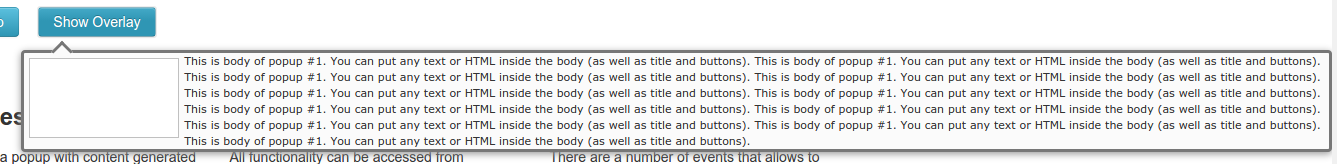

# Overlays

aka Tooltips

![Overlay](images/overlay.png)
---

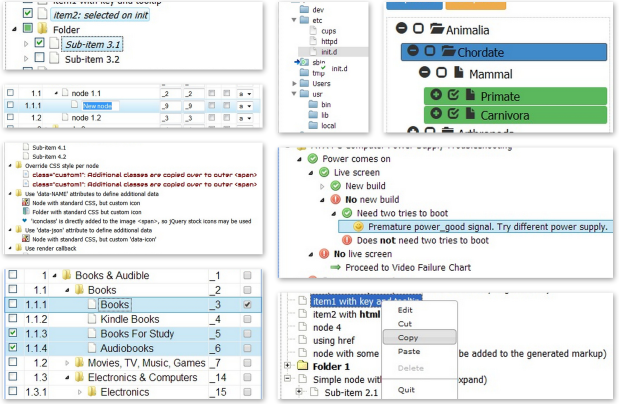

# Treewidget

## provided by Fancytree

![Fancytree](images/fancytree.png)
---
# Draggable and Droppable

provided by JQueryUI
<video width="848" height="240" controls>
  <source src="images/dragdrop.ogv" type="video/ogg">
</video>
---
# Tutorial!

Let's learn the basics by building a simple UI,
consisting of an "explorer"
It should have
* a tree for the ProductCategories on the left
* a detail grid for the Products on the right
---
# My Stack

* Hobo
* Ruby On Rails
* Ruby

I want to seperate things out

so - we generate a subsite Productmanager
---
# Subsite Controller

in `/app/controllers/productmanager/contentmanager_site_controller.rb`

```ruby
class Productmanager::ProductmanagerSiteController < ApplicationController

before_filter :productmanager_required

private

def productmanager_required
    redirect_to user_login_path unless logged_in? && current_user.administrator?
  end

end
```
---
# FrontController

in `/app/controllers/productmanager/front_controller.rb`

```ruby
class Productmanager::FrontController < Productmanager::ProductmanagerSiteController

respond_to :html, :json, :js

def index; end

end
```
---
# Namespace + Route

in `config/routes.rb`

```ruby
  namespace :productmanager do
  end

get 'productmanager' => 'productmanager/front#index', :as => 'productmanager_front'
```
---
# Generating the page tag

Instead of a view and a layout, we redefine and simplify the standard page tag

in `/var/rails/mercator/app/views/taglibs/productmanager/productmanager.dryml`
```xml
<def tag='page'>
  <html>
    <head>
      <title><%= strip_tags app_name %></title>

<%= csrf_meta_tag %>
      <stylesheet name='#{subsite}'/>

Hobo has it's own templating engine DRYML.

Tags are either called like this:
```xml
<tag attr1 attr2/>
```
or if they have params
```xml
<tag attr1 attr2>
  <param1:>param content</param1:>
  <param2:>more param content</param2:>
</tag>
```

* So DRYML is an XHTML-extension.
* Similar to the now famous web components, but to be used serverside.
* Compiled to .erb like in standard Rails
* Which is then compiled to HTML, also like in Rails
---
# `<page>` revisited

This tag serves us as layout.

We call it in the view
`app/views/productmanager/front/index.dryml`
```xml
<page/>
```

DRYML can be used in any Rails project by importing the dryml gem.

You remember?
  ```xml
  <container name="main_content"/>
  <photo name="logo"/>
  <document name="data_sheet"/>
  ```

From now on no Hobo specific stuff, I promise ;-)
---
# Compiling the Assets

in `app/assets/javascripts/productmanager.js`

```javascript
//= require application
//= require hobo_w2ui
//= require contentmanager/jquery.fancytree-all.min
```

I have written a small hobo_w2ui gem to integrate assets easily
(and a bit more...)

in `app/assets/stylesheets/productmanager.scss`

```css
/*
 *= require jquery-ui/redmond
 *= require admin/ui.fancytree.min
 *= require hobo_w2ui
 */
```
---

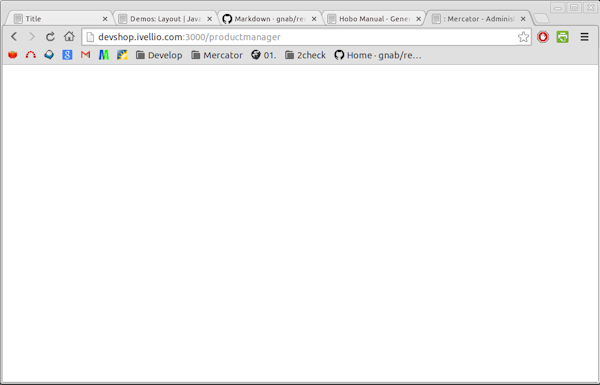

Hurray, the ground is paved:

![empty screen](images/empty.png)
---
Let's start with a layout:

![Layout](images/layout.png)
---
#Layout

in `app/assets/javascripts/productmanager/index/layout.js.erb`

```javascript
$(function () {
  $('#productmanager').w2layout({
    name: 'productmanager',
    panels: [
      { type: 'top',
        title: '<%= I18n.t("mercator.product_manager.title") %>',
        size: 58, resizable: true, content: "Top"
      },
      { type: 'left', size: '20%', resizable: true, content: "Left" },
      { type: 'main', resizable: true, content: "Main" },
      { type: 'right', size: '20%', resizable: true, content: "Right" }
    ],
    onRender: function(event) {
      event.onComplete = function () {
      }
    }
  })
})
```
---
And load the layout in the asset pipeline

in `app/assets/javascripts/productmanager/index.js`

```javascript
//= require productmanager/index/layout
```
---
background-image: url(images/layout2.png)
---
# Category Tree

Let's load the Category tree in the left pane
---
We change the layout a bit

```javascript
$(function () {
  $('#productmanager').w2layout({
    name: 'productmanager',
    panels: [
      { type: 'top',
        title: '<%= I18n.t("mercator.product_manager.title") %>',
        size: 58, resizable: true, content: "Top"
      },
*     { type: 'left', size: '20%', resizable: true, content: "<div id='categoryTree'></div>" },
      { type: 'main', resizable: true, content: "Main" },
      { type: 'right', size: '20%', resizable: true, content: "Right" }
    ],
    onRender: function(event) {
      event.onComplete = function () {
*       categoryTree()
      }
    }
  })
})
```

* Ruby - style ; , {}
* event driven / 'functional'
---
This file has to be required from the asset pipeline

in `app/assets/javascripts/productmanager/index.js`

```javascript
//= require productmanager/index/layout
*//= require productmanager/index/categoryTree.js.erb
```
---
We generate the tree

in `app/assets/javascripts/productmanager/index/categoryTree.js.erb`

```javascript
function categoryTree() {
  $("#categoryTree").fancytree({
    source: { url: "/productmanager/front/show_categorytree" },
  })
}
```
could have done this in the layout ...

We call here an action, that does not exist yet ...
---
For the new action we need a route

in `config/routes.rb`

```ruby
  namespace :productmanager do
*   get 'front/show_categorytree' => 'front#show_categorytree'
  end
```
---
And the action itself:

in `app/controllers/productmanager/front_controller.rb`

```ruby
class Productmanager::FrontController < Productmanager::ProductmanagerSiteController

respond_to :html, :json, :js

def index; end

* def show_categorytree
*   render json: childrenarray(objects: Category.arrange(order: :position),
*                              name_method: :name_with_status).to_json

protected

def childrenarray(objects: nil, name_method: nil, folder: false)
    childrenarray = []
    objects.each do |object, children|
*     childhash = Hash["title"  => object.send(name_method), "key" => object.id, "folder" => folder]
      if children.any?
        childhash["children"] = childrenarray(objects: children, name_method: name_method, folder: folder)
      end
      childrenarray << childhash
    end
    return childrenarray
  end
end
```

Category.arrange is provided by the ancestry gem, but ...
---
where title_with_status is a small helper in the model:

`app/models/category.rb`

```ruby
  def name_with_status
    if state == "active"
      name
    else
      (name + " <em style='color: green'>" + I18n.t("mercator.states.#{state}") + "</em>").html_safe
    end
  end
```
---
background-image: url(images/tree2.png)
---
# Next step

On click of a category a grid in the middle pane should display the corresponding products.
---
background-image: url(images/grid.png)
---
We expand the layout:

```javascript
$(function () {
  $('#productmanager').w2layout({
    name: 'productmanager',
    panels: [
      // ...
*     { type: 'main', resizable: true, content: "<div id='productsgrid'></div>" },
      // ...
    ],
    onRender: function(event) {
      event.onComplete = function () {
        categoryTree()
*       productsGrid()
      }
    }
  })
})
```
---
And declare the Grid

```javascript
function productsGrid() {
  $('#productsgrid').w2grid({
    name: 'productsgrid',
    multiSelect : false,
    method: 'GET',
    show: { toolbar: true, footer: true },

columns: [
      { field: 'recid', caption: '<%= I18n.t("attributes.id") %>', size: '50px',
        sortable: true, hidden: true , attr: "align=center" },
      // ...
      { field: 'title_en', caption: '<%= I18n.t("attributes.title") %> EN', size: '150px',
        sortable: true, hidden: true },
      // ...
      { field: 'novelty', caption: '<%= I18n.t("attributes.novelty") %>', size: '50px', attr: "align=center",
        render: function (record) {
          return record.novelty ? '<icon class="la la-lg la-check">' : '<icon class="la la-close">'
        }
      },
      { field: 'created_at', caption: '<%= I18n.t("attributes.created_at") %>', size: '130px',
        sortable: true, hidden: true, render: 'datetime:yyyy-mm-dd|hh24:mm:ss' }
    ],

searches: [
      { field: 'number', caption: '<%= I18n.t("attributes.number") %>', type: 'text' },
      { field: 'name_de', caption: '<%= I18n.t("attributes.name") %> DE', type: 'text' },
      // ...
    ],
    sortData: [{ field: 'number', direction: 'ASC' }],
  })
}
```
---
background-image: url(images/grid_displayed.png)
---
So let's load the data on click:

```javascript
function categoryTree() {
  $("#categoryTree").fancytree({
    source: { url: "/productmanager/front/show_categorytree" },
*   click: function(event, data) {
*     if (data.node.key) {
*       w2ui.productsgrid.load('/productmanager/front/show_products/' + data.node.key)
*     }
*   }
  })
}
```

Wait! This calls the action show_products,
that's still missing ...
---
# Route

in `config/routes.rb`

```ruby
  namespace :productmanager do
    get 'front/show_categorytree' => 'front#show_categorytree'
*   get 'front/show_products/:id' => 'front#show_products'
  end
  ```
---
# Action

in `app/controllers/productmanager/front_controller.rb`
```ruby
  def show_products
    category = Category.find(params[:id])

products = category.products
    render json: {
      status: "success",
      total: products.count,
      records: products.collect {
        |product| {
          recid: product.id,
          number: product.number,
          title_de: product.title_de,
# ...
          long_description_de: ActionController::Base.helpers.strip_tags(product.long_description_de),
# ...
          created_at: product.created_at.utc.to_i*1000,
# ...
        }
      }
    }
  end
```
---
background-image: url(images/grid_rendered.png)
---

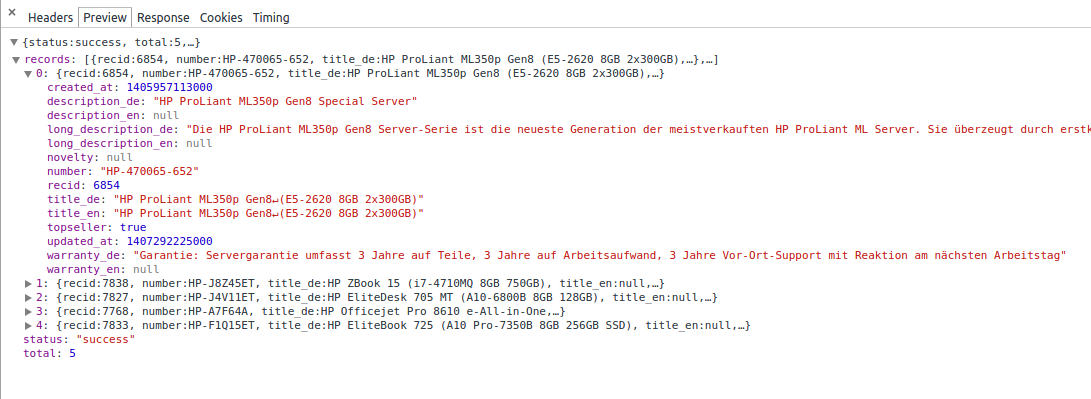

We only transfer the actual data without any boiler plate html

![Data](images/data.png)

which makes it pretty fast:

![Speed](images/speed.png)
---

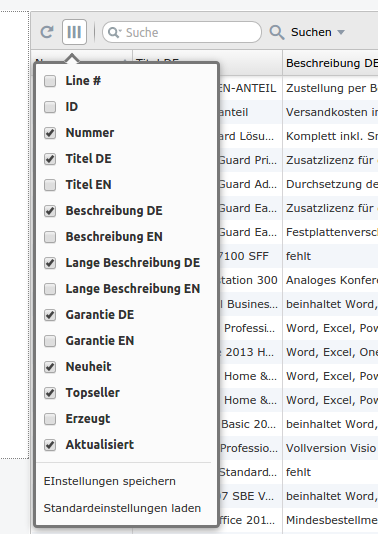

We get column selection for free:

![Columns](images/columns.png)
---

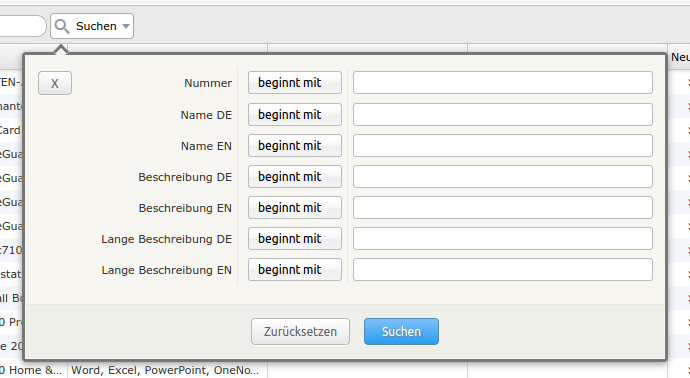

And local search in the memory for free

![Search](images/search.png)
---
That's enough for today,

if you are interested in a continuation,
episode 2 could contain

- Ajax deep dive (handling 100 thousands of data sets - instead of thousands)
- Active model serializer usage
- Drag and Drop
- Integration with Hobo and Rails standard actions

pick 2 at most ;-)
